Product Description:
Product Description:
Introducing the Commercial Industrial BESS product, a cutting-edge solution designed to meet the energy storage needs of commercial and industrial applications. This Industrial Battery Storage System Series offers a reliable and efficient energy storage solution with a range of advanced features.
Key Product Attributes:
Cycle Life: ≥8000 cycles with 70% State of Health (SOH), ensuring long-lasting performance and durability.
Operating/Storage Temperature: -20℃ to 50℃ operating temperature range and -30℃ to 60℃ storage temperature range, allowing for versatile deployment in various environments.
Rated Voltage: 614.4V, providing a stable power supply for industrial operations.
Battery Chemistry: Utilizes LiFePO4 battery chemistry, known for its safety, stability, and high energy density.
Input Format(Vac): Supports (3W+N+PE) Three Phase Four Wire+G Wire input format, offering flexible connectivity options.
The Commercial and Industrial BESS product is part of our comprehensive Commercial and Industrial Battery Energy Storage System Series, designed to optimize energy management, enhance grid stability, and reduce operational costs for businesses and industries. Whether for peak shaving, load shifting, or backup power applications, this energy storage system delivers reliable performance and efficiency.
With a focus on sustainability and reliability, the Commercial and Industrial BESS product is engineered to meet the evolving energy storage needs of modern businesses and industries. Its robust construction, advanced battery management system, and intelligent monitoring capabilities ensure seamless integration and operation in diverse industrial settings.
Experience the next level of energy storage technology with the Commercial and Industrial Battery Energy Storage Unit, designed to empower businesses and industries with efficient and sustainable energy solutions.
Product Parameters
| Specifications |
| Model | 614.4V |
| Rated energy | 30KW |
| Rated Capacity | 0.5C |
| Series-parallel Mode | >8000,70%SOH |
| Communication Characteristics |
| Rated Power | 30KW |
| Rated frequency | 50Hz/60Hz |
| Rated Current | 46A |
| Input Format (Vac) | (3W+N+PE)Three phase four wire+G wire |
| Overall Efficiency | ≥88%@25℃±2℃,0.5P |
| Power Factor | 1.0 Leading -1.0 Lagging |
| Total Harmonic Distortion THD% | ＜3%(rated power) |
| DC Characteristics |
| Rated Voltage | 614.4V |
| Maximum Output Function | 30KW |
| Continuous Charge Discharge Rate | 0.5C |
| Cycle Life | >8000,70%SOH |
| Battery Chemistry | LiFePO4 |
| Other Characteristics |
| SecurityAnd Protection | Supportwaterimmersion,smoke,temperature and humidity,multi-dimensionagas monitoring,etc,Package level and cabinet levelperfluorohexane fireprotection:Package level and cluster levelcontrol and protection strategiesare often applied frombattery cells to clusters,as well as protection againstundervoltage,overcurrent,overtemperature,islanding,faults,short circuits.etc:Single clustermanagement,reiect circulation. |
| Energy Management And Control | Support Energy Scheduling And Anti Backflow Management |
| Communication Interface | RS485/CAN/RS232 |
| Dimension(LxWxH) | 1100*700*1350mm |
| Operating Environment |
| Operating/Storage Temperature | -20℃~50℃/-30℃~60℃ |
| Protection Grade | IP54 |
| Cooling Method | Equipment: Intelligent Air Cooling |
| Allow Relative Humidity | 0-95% Non Condensing |
| Highest Altitude | 4000m (>2000m Down Conversion) |
Applications:
The JUNEXT JNESS0060-030A Commercial and Industrial Battery Energy Storage System Series is a versatile and reliable solution for a wide range of applications in commercial and industrial settings. With its place of origin in Shenzhen and certifications including UN38.3, MSDS, and CE, this product is designed to meet the highest quality standards.
One of the key features of the JNESS0060-030A model is its capability to operate at high altitudes, making it suitable for locations above 2000 meters. This makes it an ideal choice for industries located in mountainous regions or highlands.
With a rated power of 30KW and compatibility with both 50Hz and 60Hz frequencies, the JUNEXT industrial battery storage system series offers flexibility and efficiency in power management. Its wide operating temperature range of -20℃ to 50℃ and storage temperature range of -30℃ to 60℃ ensure reliable performance in diverse environmental conditions.

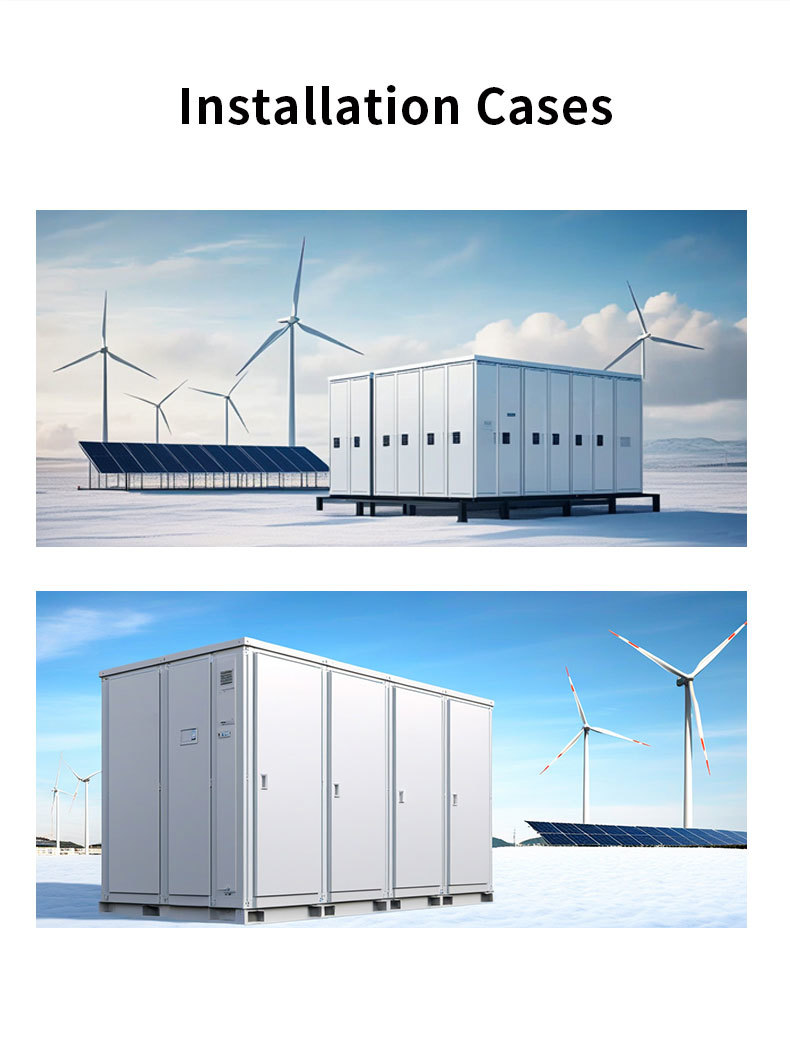

The Commercial and Industrial Battery Storage Solution from JUNEXT is perfect for various scenarios including large-scale manufacturing facilities, data centers, commercial buildings, and renewable energy integration projects. Its robust design and advanced technology make it a dependable choice for businesses looking to enhance their energy management capabilities.
Whether it's for peak shaving, load shifting, renewable energy integration, or backup power applications, the JUNEXT JNESS0060-030A model provides a cost-effective and sustainable solution for commercial and industrial energy storage needs. Trust in the quality and performance of JUNEXT for all your battery energy storage requirements.
